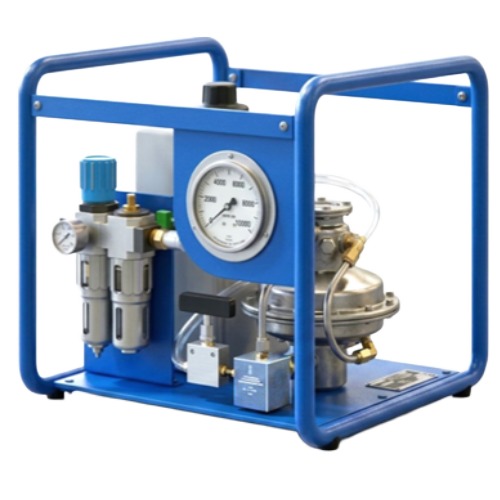

L-SERIES

• Rigid powder-coated carbon steel frame for harsh environments.
• FRL unit, 4"/6" glycerine-filled pressure gauge & level indicator.
• Air ON/OFF and bleed valves included.
• Suitable for water, hydraulic oil & non-corrosive fluids.
• Air consumption: 50 SCFM.
• Output pressure up to 42,000 PSI.
• 8 L plastic reservoir.
• Modular design with customizable options.

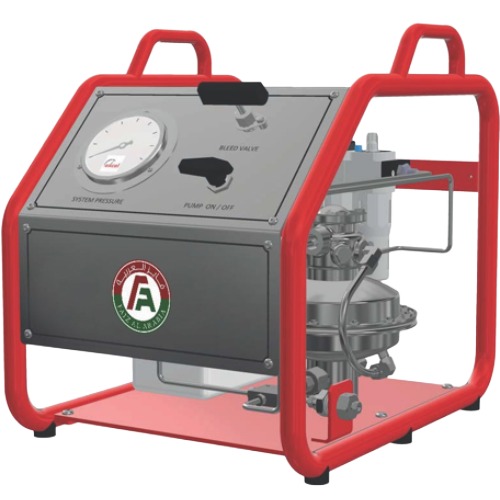

H-SERIES

• Heavy-duty Sprague air driven pump, ratios 100:1 to 300:1; T-series ratios 254:1 and 365:1
• No risk of heat, flame or spark
• Infinitely variable flow rate
• Robust design permits continuous start/stop application
• Wide range of pump seals available to suit different industries
• Recommended for heavy-duty applications including offshore oil & gas and marine industry

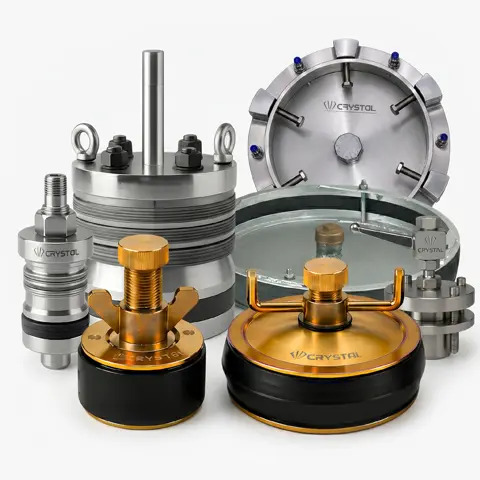

MECHANICAL TEST PLUGS

Mechanical pipe plugs for testing, sealing, and temporary isolation.

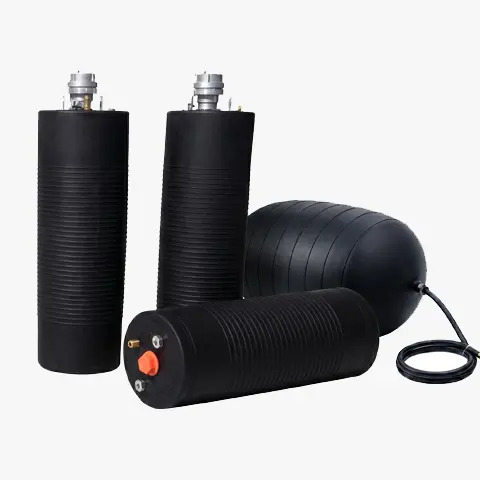

INFLATABLE TEST PLUGS

Inflatable and balloon plugs for sewer, drain, and pipeline testing.

WELD TESTING & ISOLATION PLUGS

Specialized plugs for weld testing and pipeline isolation applications.

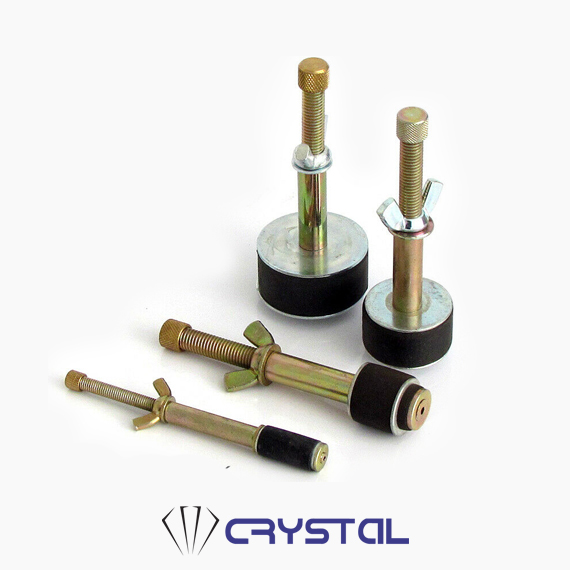

MDPE/HDPE Test Plug

Optimize your testing operations with the CRYSTAL MDPE/HDPE Test Plugs, meticulously designed for robust pressure testing up to 6 bar. These plugs are ideal for diverse applications and are compatible with small bore copper, steel, or MDPE/HDPE piping systems.

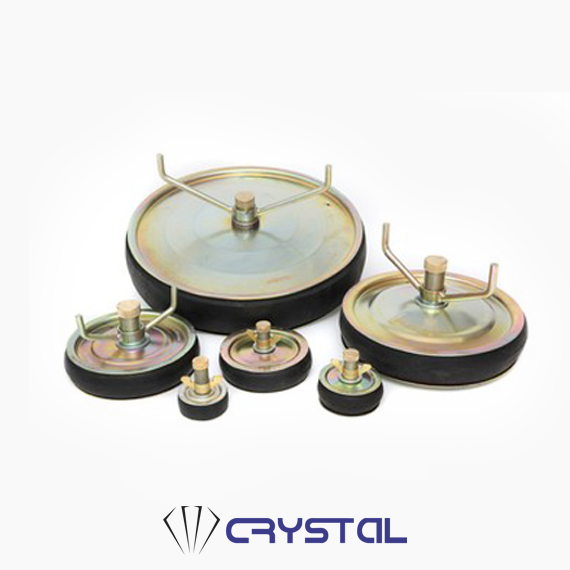

Test Plug [Center Lock]

Steel Test Plugs are designed for testing leaks, pressure and to seal off sections of pipelines.

The test plugs are developed with a vent tube for venting excess back pressure, which is suitable for testing pressure in sewage, waste, and stormwater pipes. Before selecting a test plug the maximum allowed back pressure should be pre-determined.

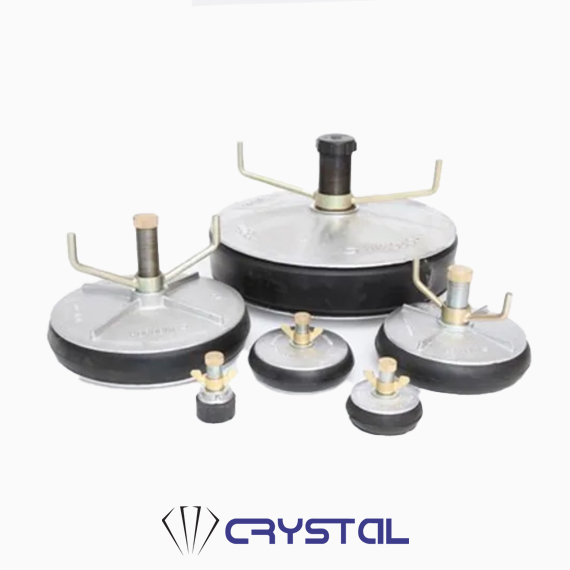

Aluminum Test Plug

Experience the unmatched excellence of CRYSTAL Test Plugs for pipe testing. From a compact 1.5" to a robust 24", our plugs cover a wide range of sizes to ensure a perfect fit for every need. Choose CRYSTAL test plugs for superior quality, unwavering reliability, and unmatched versatility in all your projects.

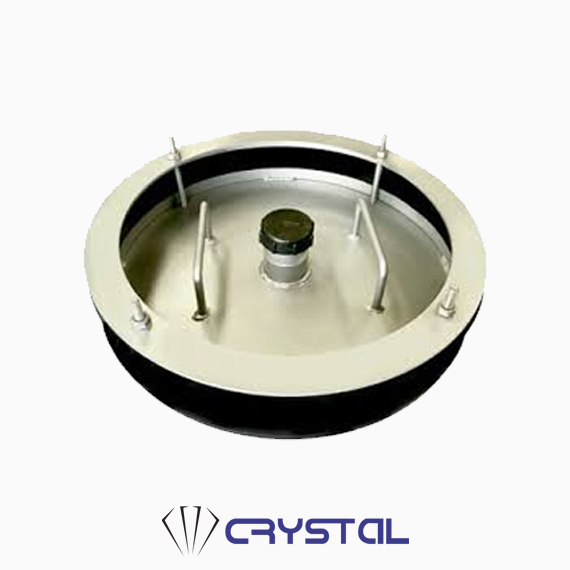

Rim Fastening Test Plugs (Multi-lock)

The Rim Fastening Test Plug is an essential tool designed for the secure testing and maintenance of plumbing and piping systems. This robust test plug is engineered to provide a tight and reliable seal in various pipe diameters, ensuring accurate pressure tests without leaks.

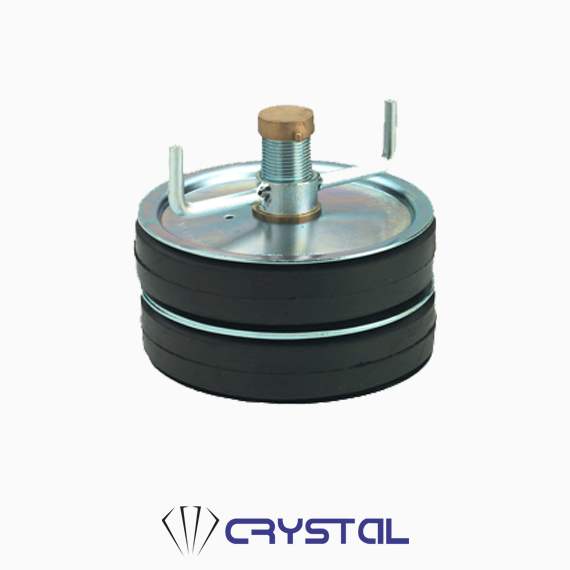

Double Seal Test plug

Experience the perfect blend of efficiency and reliability with the CRYSTAL Double Seals Test Plug, crafted from high-quality steel and aluminum. Designed to insert further into the pipe, this plug offers exceptional stability within the pipeline, thanks to its double seal system which ensures the plug is perfectly centralized for accurate and secure operation.

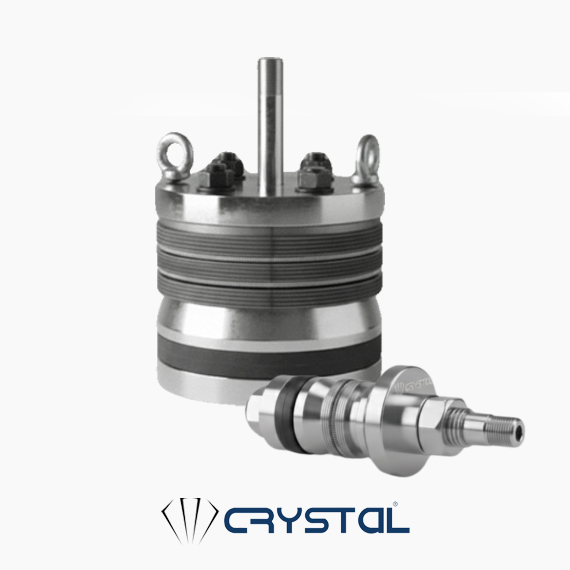

IN-MAX™ High-Pressure Inner Test Plug

IN-MAX™ is a next-generation internal pressure test plug engineered for precision, safety, and performance. It replaces welded end caps with a reusable, high-pressure solution for faster and cleaner pipeline testing.

Designed for professionals who demand reliability under pressure, IN-MAX™ features a dual-serrated self-aligning gripper system that locks and seals from inside the pipe. Its central pressure port enables full control of filling, venting, and draining during hydrostatic or pneumatic testing without welding, heat, or downtime. Machined for accuracy. Proven for performance. Trusted for every test.

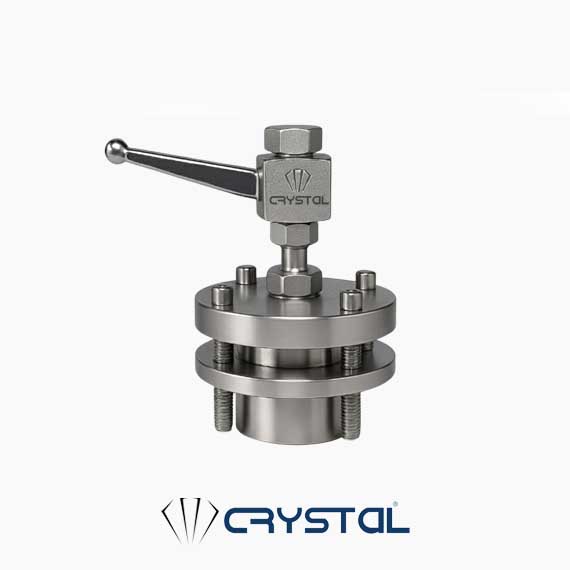

OUT-MAX™ | High-Pressure Outer Test Plug

High-pressure plug designed for testing open or plain-end pipes by sealing on the pipe O.D.

The grip-lock system provides a secure external seal while preventing damage to the pipe or sealing element during installation and removal.

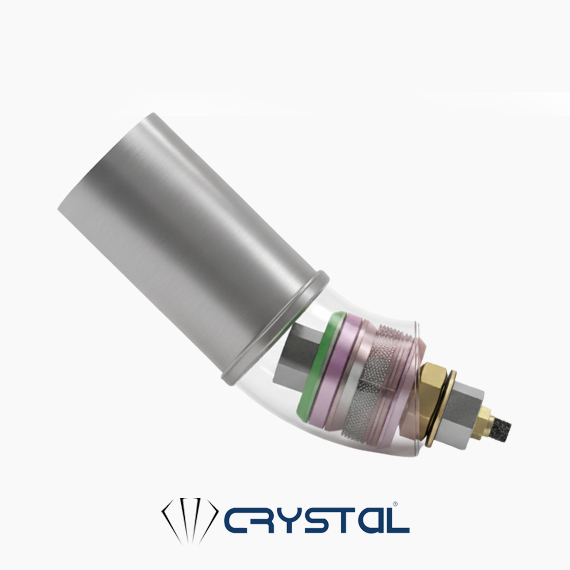

ELBOW-MAX™ | High-Pressure Elbow Test Plug

The ELBOW-MAX™ plug is designed for reliable pressure testing of long-radius elbows without welding or end caps.

It features a self-aligning, dual-grip sealing system that automatically centers inside the elbow, ensuring a secure, leak-free seal regardless of orientation.

Each unit is precision-machined to withstand extreme pressures while protecting the pipe’s internal surface from damage.

Its compact body and guided alignment design simplify installation, making it ideal for workshop or field applications.

No welding. No cutting. No wasted time.

Just fast and clean testing. engineered for reliability.

ELBOW-MAX™ makes elbow testing faster, safer, and more precise than ever before.

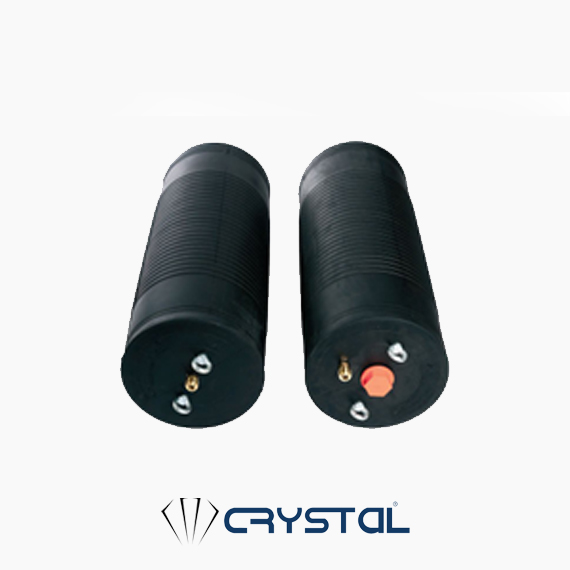

INFLA-STOP™ | Inflatable Pipe Stopper Plug

Inflatable Pipe Stoppers provide temporary pipeline isolation for oil, gas, petrochemical, water, and drainage systems.

They deliver reliable sealing for sewers, pipelines, and drain lines during maintenance, repairs, leak checks, and hydrostatic testing..

Flexible and easy to deploy, they allow contractors to block specific pipe sections for fast, safe, and controlled maintenance work.

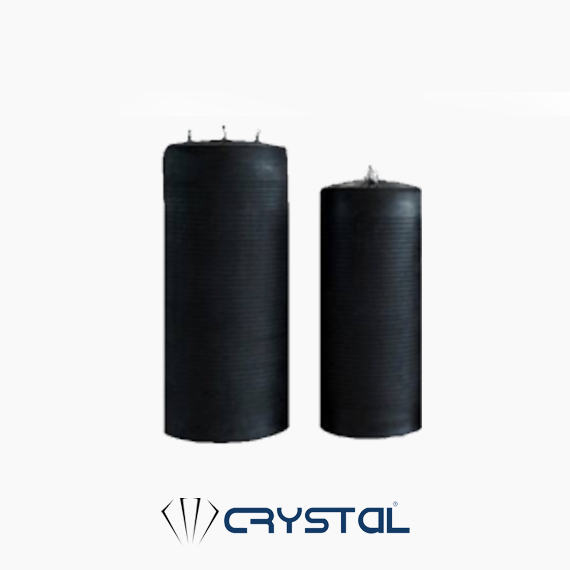

INFLA-PSTOP ™ | High-Pressure Inflatable Pipe Stopper

INFLA-PSTOP™ is a High-Pressure Inflatable Pipe Stopper engineered for temporary isolation of pressurized pipelines in oil, gas, petrochemical, and industrial systems.

Built with reinforced, high-strength materials, it provides secure, leak-tight sealing during maintenance, shutdowns, hydrostatic testing, and emergency repair operations.

Designed to withstand demanding pressure conditions, INFLA-PSTOP™ prevents the intrusion of water, gas, debris, dust, and contaminants into active or newly constructed pipelines — ensuring clean, controlled, and safe field operations.

Its flexible inflatable design allows technicians to block specific pipe sections quickly and safely, enabling faster maintenance with minimal downtime.

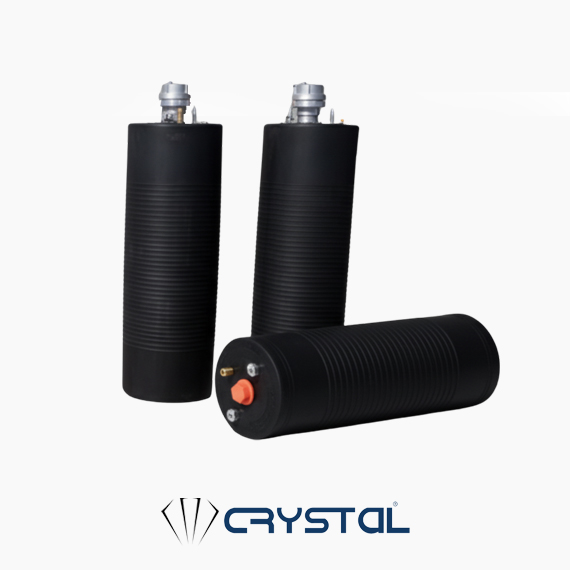

INFLA-TEST™ | Inflatable Pipe Test Plug

High-pressure inflatable stopper engineered for temporary pipeline isolation, maintenance, and hydrostatic testing in oil, gas, and petrochemical systems.

Constructed from reinforced high-strength rubber compounds for exceptional resistance to pressure, fuels, gases, and harsh industrial environments.

Designed to withstand demanding operating conditions, INFLA-PSTOP™ delivers reliable leak-tight sealing, preventing the intrusion of water, gas, debris, dust, and contaminants during shutdowns, repairs, or emergency interventions.

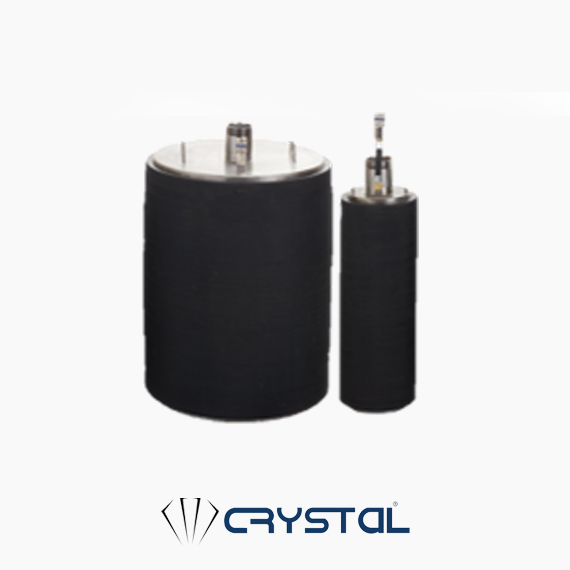

INFLA-PTEST ™ | High-Pressure Inflatable Test Plug TPR-INFLA™ Series

INFLA-PTEST™ is a High-Pressure Inflatable Test Plug engineered for hydrostatic pressure testing and temporary isolation in water lines, sewer networks, drainage systems, oil & gas pipelines, and petrochemical process lines.

Built from reinforced high-strength elastomer materials, it provides a secure, leak-tight seal for testing, maintenance, repair work, shutdowns, and emergency isolation. Its advanced inflatable sealing design ensures fast installation, reliable expansion, and consistent pressure performance across a wide range of pipeline environments.

Ideal for contractors and utilities requiring safe, dependable, and high-pressure isolation for water infrastructure, wastewater systems, industrial pipelines, and field testing operations.

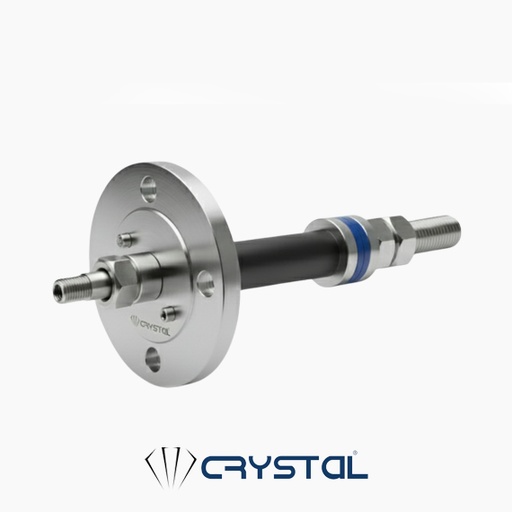

FLANGE-WELD™ | Flange Weld Test & Isolation Plug

Mechanical plug designed for flange-to-pipe welding and hydrostatic testing operations.

The FLANGE-WELD can be used in either a test plug or a weld plug configuration, allowing users to isolate the flange weld area, monitor upstream pressure, purge with an inert gas, and test the completed weld, all with a single tool.

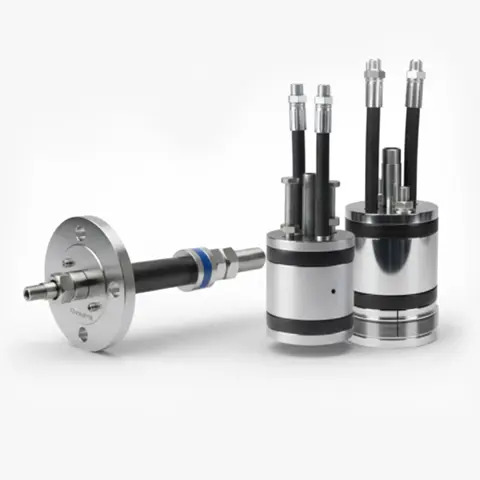

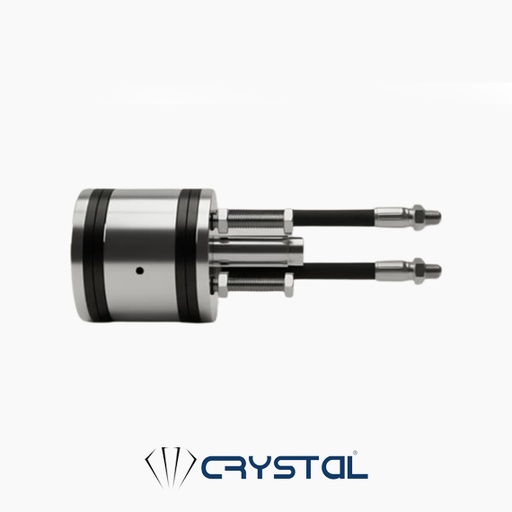

DB-WELD™ | Double Block Weld Tester

The DB-WELD™ tester is a professional double-block system designed for safe and efficient isolation of pipeline weld areas in depressurized or offline conditions.

It creates a dual-seal barrier between the pipe walls, allowing localized pressure testing without filling the entire line.

Pressure confined between the seals enables hydrostatic testing to check for weld leakage while ensuring controlled containment and preventing accidental pressure release.

Compact and lightweight, it minimizes downtime during fabrication and maintenance, delivering reliable results without welded closures or caps.

Dual-seal precision. Zero compromise. Full control.

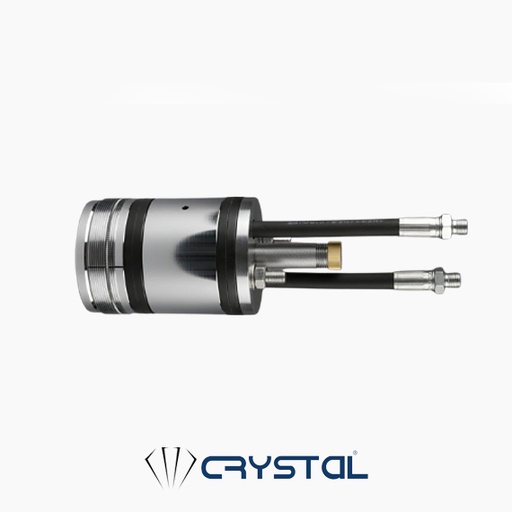

DBG-WELD™ | On-line Double Block Weld Tester

The DBG-WELD™ tester is designed to isolate a live pipeline section and pressure-test new welds without a full system shutdown.

It uses a dual-seal and bleed-port configuration that forms a secure pressure barrier between seals, allowing safe operation while upstream pressure remains active.

This system combines control and safety: the isolation zone can be filled, vented, and pressurized through dedicated ports for precise monitoring during hot-work or post-weld hydrotesting.

The dual-serrated gripper system is the heart of the design. The grip mechanism self-aligning gripper expands using tightening bolts that apply outward pressure against the inside wall of the pipe.

Its mechanical design uses internal expansion and self-energizing sealing to lock the plug tighter as pressure increases.

Built from high-strength materials with advanced sealing technology, DBG-WELD™ ensures total confidence under pressure, minimizing downtime and eliminating the need for temporary cut-outs or full line drains.

Calibration Gauge ETG

Choose your options and build the gauge for your application. Now with the ability to measure temperature. Add the Hydro Management Software to create full blown tests for ASME B31.3 and replace several analog gauges. Vaetrix ETG utilizes the latest digital technology to accurately solve pressure measurement applications. All MEMS pressure sensors are fully temperature compensated throughout the operating range. The easy to use interface and intuitive menu structure is the best in the industry. There are no encrypted symbols or abbreviations, just press the arrow keys to navigate the menu and select your choice.

Digital Process Gauge ETG

Choose your options to build your gauge. Add -BT Bluetooth to monitor pressure on your phone/tablet, track pressure trends, or run leak tests. If you need basic temperature measurement capability for tests to ASME B31.3 or gas distribution testing, select the -TP option as well. Even select EX for Intrinsically Safe approval on this lower accuracy gauge. Bluetooth is not available on EX products due to power consumption. Create custom test reports with ease by adding the Hydro Data Management software with plot curves for both pressure and temperature. No other gauge gives you these options at this value.

Panel Mount Gauge ETGP

Vaetrix ETG utilizes the latest digital technology to accurately solve pressure measurement applications. All MEMS pressure sensors are fully temperature compensated throughout the operating range. The easy to use interface and intuitive menu structure is the best in the industry. There are no encrypted symbols or abbreviations, just press the arrow keys to navigate the menu and select your choice.

Distribution Test Gauge (DTG2)

Developed in collaboration with gas distribution customers, this rugged, compact enclosure transforms our standard panel-mount gauge into a reliable solution for remote pressure monitoring and data logging. Designed for demanding outdoor environments, it provides IP67 protection when closed and IP54 when open. The external ¼-inch FNPT pressure connection and viewing window allow monitoring while keeping the enclosure closed in rain or snow. A side-mounted USB port offers convenient connectivity and can power the gauge, while standard Bluetooth enables monitoring via a smartphone or tablet within approximately 40 feet. For extended battery life and dependable backup power, an optional rechargeable lithium-ion battery pack is also available.

Digital Chart Recorder DCR2

The enclosure features IP67 protection when the lid is closed, panel-mounted battery access, an external pressure connection, and a viewing window for use in challenging weather conditions. A side-mounted USB port enables data access and can power the gauge, while standard Bluetooth connectivity allows monitoring via a phone or tablet within approximately 40 feet.

4-year warranty

Accuracy

0.05% of full scale over the specified operating temperature range.

0.1% of full scale for 20K and 30K ranges.

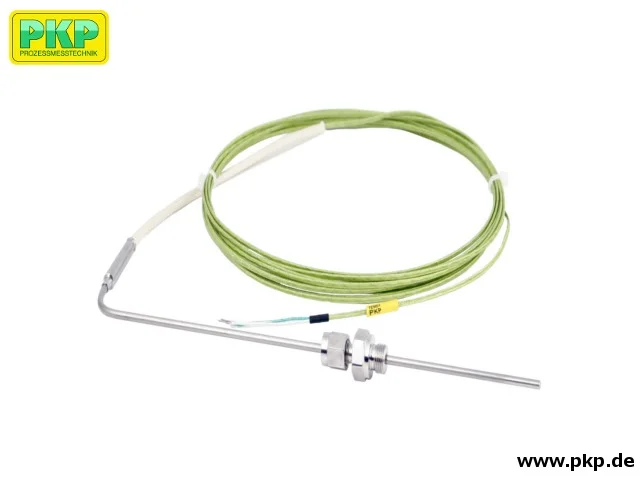

Hydro Temperature Probe HTP2

The Vaetrix HTP2 simplifies pipeline and ground temperature measurement with multi-point data logging directly to non-volatile memory—no long cables or faulty connections. Data transfers seamlessly to Hydro Data Management Software, with no Excel required.

Includes a NIST calibration certificate with data and a 4-year warranty. A direct replacement for the HTP-12-RTD and HTP-72-FLEX, it supports the VZ-CABLE RTD Extension Cable and VX-RTD-PROBE.

Specification: 4-wire, 100 Ω platinum RTD probe, 385 curve, Class A.

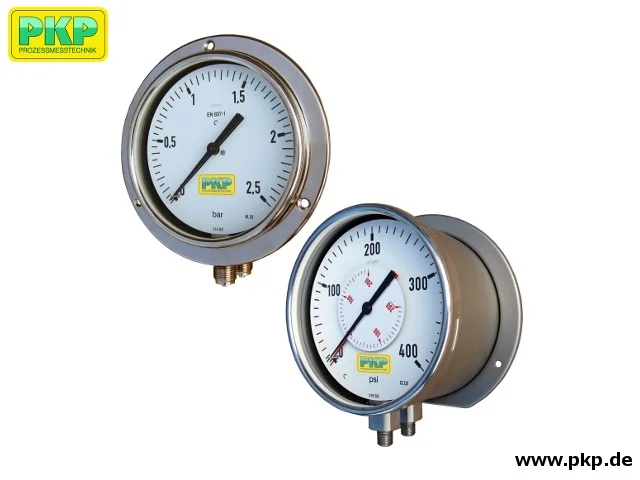

PDR02 Double bourdon tube differentiel pressure gauge

- Two separate measuring systems
- Housing diameter 100 or 160 mm
- Accuracy class 1,0
- Housing stainless steel, wetted parts stainless steel
- All mounting versions
- Process connections: 1/2", 3/8", 1/4" G or NPT
- Completely welded design
- Max. temperature: 100 °C
- Ranges: from -1..0 bar to 0..1600 bar

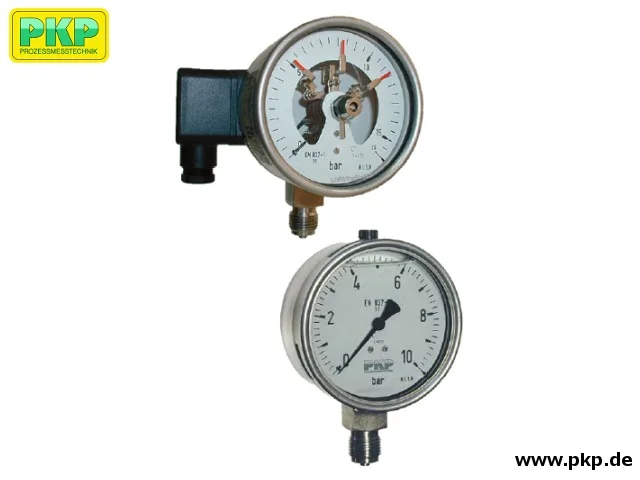

PMR04 Bourdon tube pressure gauge

- Housing diameter: 4" / 100 mm, 6.3" / 160 mm, 9.8" / 250 mm
- Accuracy class 1.0
- Brass or stainless steel versions
- Process connection: G or NPT 1/2" bottom or back
- Versions with front or back ring or with clamp for panel mounting available
- Options: alarm contacts, analog output, special scales, special connections, filling
- Max. temperature: 200 °C
- Ranges:-1000...0 mbar - 0…2500 bar

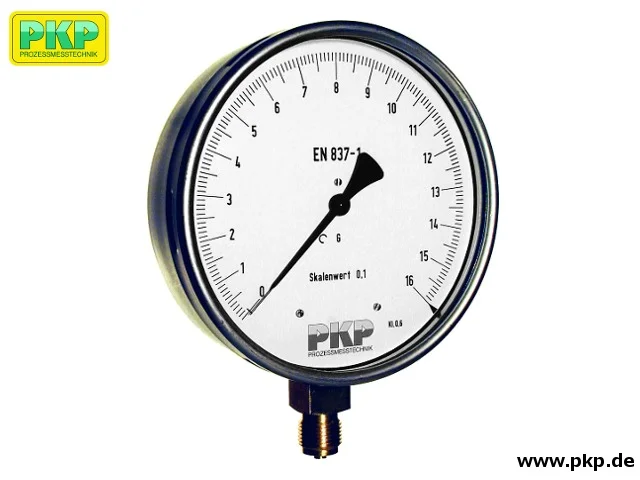

PMR06 Precision bourdon tube pressure gauge

- Nominal size 160 or 250 mm
- Accuracy class 0.6
- Process connection: G or NPT 1/2" bottom or back
- Brass or stainless steel versions with or without glycerine filling available
- Glycerine filling optional
- Versions with front or back ring or with clamp for panel mounting available
- Max. temperature: 100 °C
- Ranges:-1200...0 mbar to 0...1600 bar

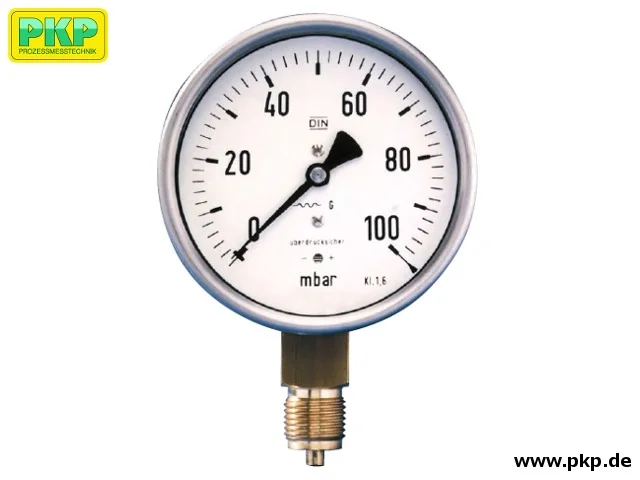

PMK04 Capsule element pressure gauge for gases

- Housing diameter (round housing): 60, 100, 160 mm
- Rectangular housings from plastic:
- 72x72mm, 96x96 mm, 144x144 mm, 144x72 mm, 192x96 mm
- Connection brass or stainless steel
- Process connection: G 1/4 bottom or back connection for dia. 63 mm,
- G1/2 for dia. 100 and 160 mm,
- G 1/2 back for rectangular housings
- Measuring element: copper alloy or stainless steel
- Optionally with glycerine filling
- Max. Temperatur: 100 °C
- Ranges:-25...+15 mbar to 0...600 mbar

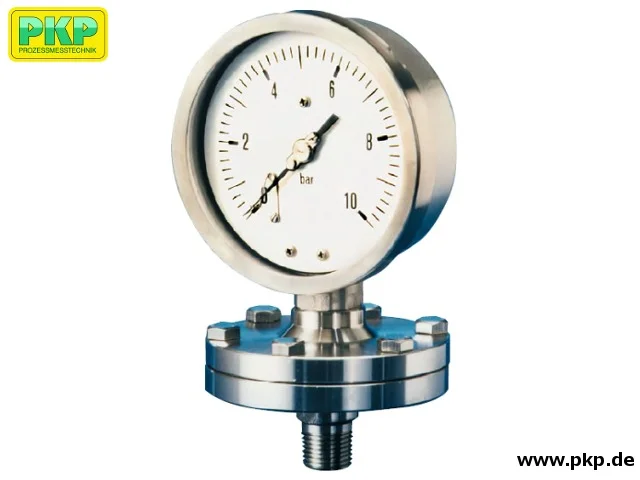

PMP04 Diaphragm pressure gauge

- Housing diameter: 100, 160, 250 mm
- Accuracy class: 1,6
- Housing stainless steel, upper and lower flange from aluminium or stainlesssteel
- Process connection G 1/2 bottom, flanges DN 25, DN 50 DN 64 or ANSI
- Max. temperature: 100 °C
- Ranges:-1200...0 mbar to 0...400 mbar

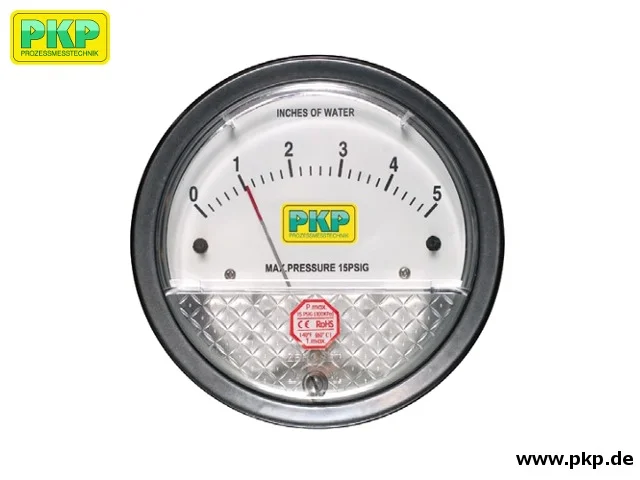

PDS02 Low-Cost pressure gauge with membrane sensing element for differential and gauge pressure

- Housing diameter 114 mm
- For non-aggressive gases
- For panel or wall mounting
- Housing made of cast aluminum
- Process connections: 2 x 1/8" NPT female on side and on back each
- Ranges:from 0...60 Pa to 0...30 kPa

PDR02 Double bourdon tube differentiel pressure gauge

- Two separate measuring systems
- Housing diameter 100 or 160 mm
- Accuracy class 1,0
- Housing stainless steel, wetted parts stainless steel
- All mounting versions
- Process connections: 1/2", 3/8", 1/4" G or NPT
- Completely welded design
- Max. temperature: 100 °C
- Ranges:from -1..0 bar to 0..1600 bar

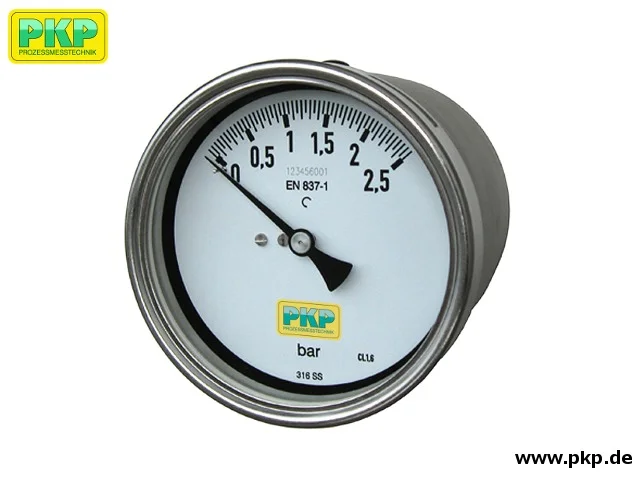

PDR04 Differential pressure gauge with double linked bourdon tubes

- Two coupled measuring systems for direct indication of differential pressure
- Static pressure approx. 4 x measuring range
- Housing diameter 100 or 160 mm
- Accuracy class: 1,6
- Housing stainless steel, wetted parts stainless steel
- Process connections: 1/2", 3/8", 1/4" G or NPT
- All mounting versions
- Fully welded design
- Optional limit switches available
- Max. temperature: 100 °C
- Ranges: 0...0.6 bar to 0..16 bar

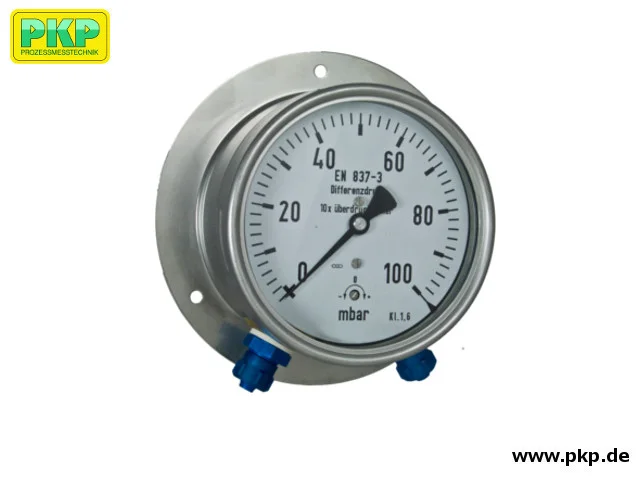

PDK01 Differential pressure gauge with capsule element

- For gases and dry media
- Housing diameters 100 or 160 mm
- Max. temperature: 100 °C
- Accuracy class 1,6
- Differnet housings -/connections
- Ranges: from -400...0 to 0...600 mbar

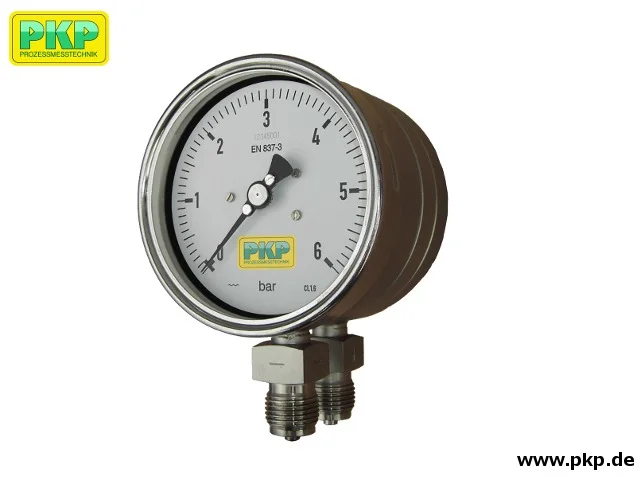

PDP02 Differential pressure gauge with diaphragm and two measuring chambers

- Low-cost version
- With two measuring chambers divided by a diaphragm
- Housing diameter 100 or 160 mm
- Accuracy class 2,5
- Housing stainless steel, wetted parts stainless steel, seals Viton or PTFE
- Process connections: 1/2", 3/8", 1/4" G or NPT
- All mounting versions
- Static pressure 20 bar, overload protection approx. 4 x measuring range (max. 20 bar)
- Max. temperature: 80 °C
- Ranges: 0...0.6 bar bis 0..16 bar

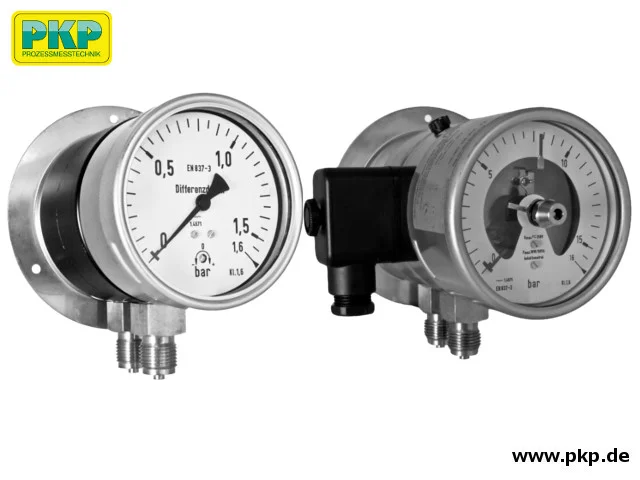

PDM02 Differential Pressure Gauge with Membrane Measuring System

- For gaseous and liquid media
- Housing diameter 100 or 160 mm
- Connections made of brass or stainless steel
- Static pressure: max. 25 bar
- High overload protection: max. 25 bar
- Accuracy class 2,5
- Tmax: 100 °C
- Measuring range: from 0...10 mbar to 0...10 bar

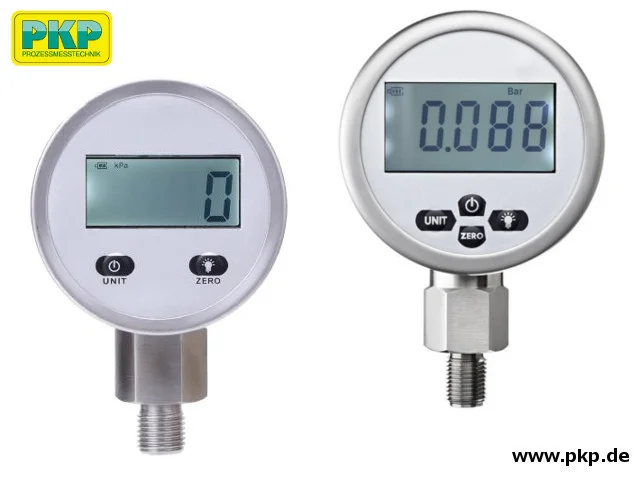

PMD01 Digital pressure gauge with LCD display, battery powered

- Ideal for mobile service
- Easy to read LCD, 4-digit
- Max. temperatur: 70 °C
- MIN / MAX indication at Pro-version
- Automatic power saving mode
- Display light
- Ranges:-1...0 bar to 0...1000 bar

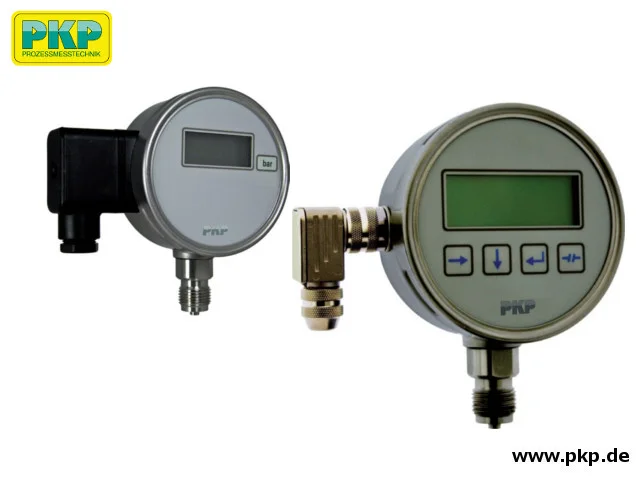

PMD02 Digital pressure gauge

- LCD display with 14 mm digit height
- Accuracy: 0,3 % of fs, +/- 1 digit
- stainless steel sensor for aggressive media
- Process connections: 1/4 ", 1/2"
- Custom pressure units
- Trailing pointer function for MIN/MAX memory
- Up to 4 limit switches
- Analogue output and interfaces for RS232 und RS485
- Datalogger
- Max. temperature: 80 °C
- Ranges: 0..2,5 mbar up to 0..2500 bar

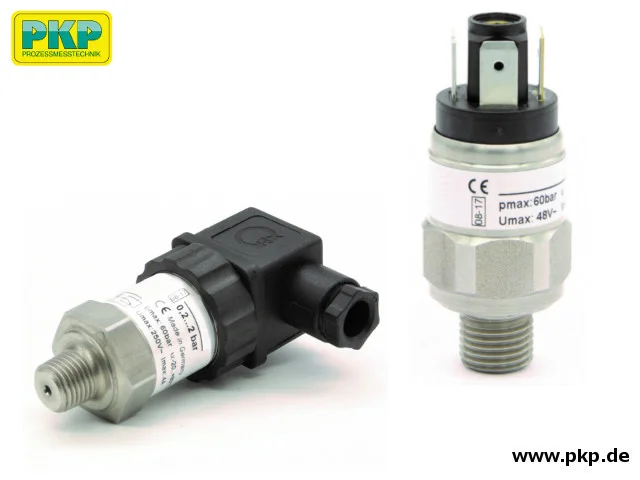

PS00 Low cost pressure switch

- Adjustable switchpoint
- Process connection G 1/4 B
- Electrical connection: flat and angled connection
- Max. temperature: 80 °C
- Switching ranges: -0,85...-0,15 bar up to 30...320 bar

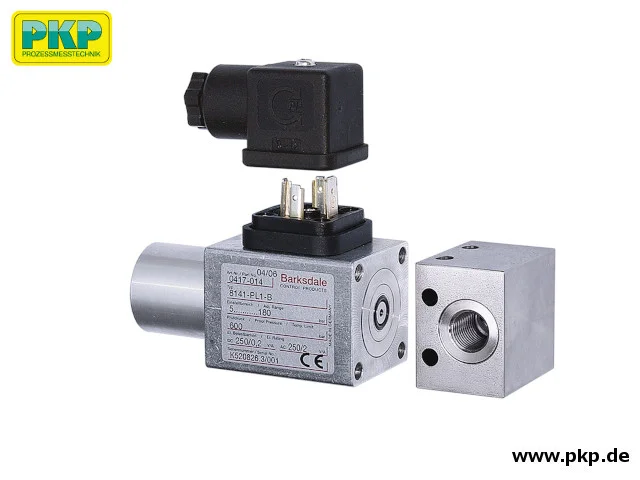

PS30 Compact Pressure Switches

- Very low and precise switching point settings
- Modular construction
- High-quality materials
- 100 % functional test
- Precisely adjustable due to long pressure springs
- Approvals: Ex ia, cULus, marine, SIL2/3 (IEC 61508)
- Max. temperature: 80 °C
- Measuring ranges: 0,6...600 bar (8,7...8700 psi)

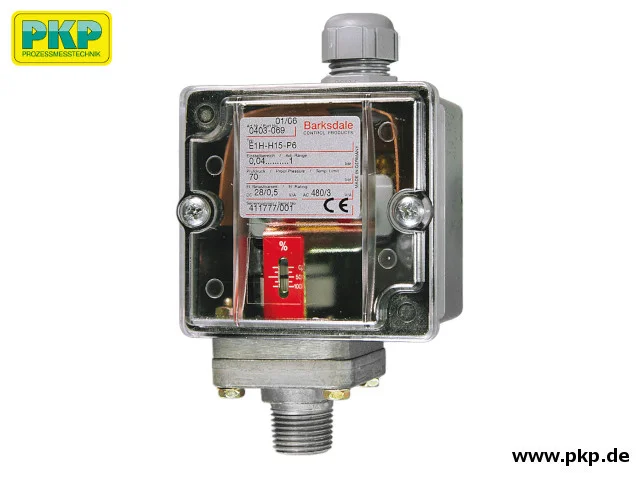

PS40 Diaphragm Seal Piston Pressure Switch

- Mechanical pressure switch and vacuum switch
- Switching point adjustable during operation with corresponding reference device
- Rich in variants
- High quality materials
- Precisely adjustable due to long pressure springs
- Max. temperature: 70 °C
- Measuring ranges:
-0,28 … -0,9 bar (vacuum range)
0,10 … 34 bar (relative pressure)

PS50 Metal Diaphragm Pressure Switch

- Mechanical pressure switch and vacuum switch
- Switching point adjustable during operation with corresponding reference device
- Direct acting, no friction, high accuracy
- Process connection made of stainless steel 1.4301
- Ex ia approval
- Max. temperature: 75 °C
- Measuring ranges:
-0,006 … -1 bar (vacuum range)
0,005 … 10,3 bar (relative pressure)

PSA10 Electronic pressure switch with display

- Two transistor switching outputs PNP adjustable as N7O or N/C
- Switching status display green or red, clearly visible from a distance
- Switching delay function adjustable
- 4-digit LED display with menu navigation
- Max. temperature: 85 °C
- Switching ranges: -1...+16 - 4...400 bar

PSA30 Electronic Pressure Switch and Transmitter

- Up to 2 switch points
- Analogue output 4...20 mA or 0...10 V
- Rotatable 320° display and electrical connection
- Menu navigation refers to VDMA standard
- IO-Link communication interface
- Max. temperature: 100 °C
- Measuring range: 0...-1 bar up to 0...600 bar relative pressure

PSD30 Electronic Differential Pressure Switch and Transmitter

- Up to 2 switch points
- Analogue output 4...20 mA or 0...10 V
- Rotatable 320° display and electrical connection
- Superior EMI protection
- Enclosures rating type IP65 / IP67
- IO-Link communication interface
- Max. temperature: 100 °C
- Measuring range differential pressure: 0...350 mbar up to 0...35 bar

PUM04 Pressure transmitter of stainless steel with ceramic membrane

- Measurement of relative pressure
- Low priced ceramic membrane
- Accuracy: 0,3 % FS
- Optional with a front flush membrane of stainless steel
- Robust design
- Current or voltage output
- Max. temperature: 80 °C
- Ranges: -1...0 bar to 0...400 bar

PUM06 Universal pressure transmitter of stainless steel

- Measurement of relative or absolute pressure
- Measuring cell: high-quality stainless steel membrane
- High chemical resistance and long-term stability
- Accuracy: 0,3 % FS
- Optional with front flush membrane of stainless steel
- Robust design
- Current or voltage output
- Max. temperature: 80 °C
- Ranges: -1...0 bar to 0...2500 bar

PUM50 OEM Miniature pressure transmitter

- Material: stainless steel
- Process connection: G or NPT, 1/4" or 1/2" male thread
- Output signal: 4-20 mA or 0...10 V
- Accuracy: +/- 1% f.s.
- Max. temperature: 80 °C
- Ranges: 0...1 bar to 0...600 bar

TZ04 Nitrogen filled dial thermometers

- Sizes from 63 to 250 mm diameter
- Housing material stainless steel
- With directly mounted stem or with capillary
- Sensor element and process connection configured individually
- Scales in °C or °F
- Limit switches or analog output signals optionally
- Accuracy: 1.6 %, 1 % or 0.6 % of f.s.
- Various accessories (temperature recorders etc.) available
- Max Druck: 25 bar
- Ranges: from -200...50 to 0...800 °C

TEM01 Sheathed temperature sensor with cable connection

- Measuring element Pt100, thermocouple type K
- Sensor housing from stainless steel or Inconel
- Cable from silicone, PTFE or glass fiber/stainless steel
- Max. pressure: PN 25
- Range: -190... +1200 °C

TFK02 Compact resistance temperature sensor (Pt100)

- With angle connector DIN EN 175301-803
- Compact design, very service-friendly
- Replaceable measuring insert
- Integrated transmitter optional
- Resistance-, current- and voltage output
- Wetted parts from 1.4571
- Short response time
- Max. pressure: 25 bar (40 bar auf Anfrage)
- Measuring ranges: -200 °C to +600 °C

TFK03 Compact resistance thermometer (Pt100) with M12x1 connector

- Very small design because of M12x1 connector
- Pt100-output or analoge output 4...20 mA
- Wetted parts from 1.4571
- Short response time
- Very service-friendly
- Max. pressure: 100 bar
- Measuring ranges:-50 °C to +200 °C

TF04 Temperature probes with interchangeable measuring insert acc. to DIN 43735

- Resistance thermometer or thermocouple
- Various mounting heads, shaft lengths and diameters
- All wetted parts stainless steel 1.4571
- Process connection: straight shaft, G1/2, G 1, movable flange, others on request
- Output signal: Pt100, 3- or 4-wire
- Thermocouple type K, J, R, S
- Integrated transmitter with 4...20 mA output available
- Max. pressure: 40 bar
- Range:-200...+1232 °C

TSA30 Electronic Temperature Switch and Transmitter

- Pt100 measuring system
- Up to 2 switch points
- Analogue output 4...20 mA or 0...10 V
- Rotatable 320° display and electrical connection
- Menu navigation refers to VDMA standard
- IO-Link communication interface
- Max. pressure: 200 bar
- Measuring ranges: 0...100 °C or -30...+130 °C

TR02 Temperature transmitter for ambient air

- Resistance thermometer and temperature transmitter
- Pt1000 measuring element
- For ambient air
- Range:-50...+50 to 0...+150

Turbine Flow Meters

Turbine flow meters measure clean, low-viscosity liquids and gases across oil and gas, chemical, aerospace, power, and water industries, offering long-term stability and seamless process control integration.

Coriolis Flow Meters

Turbines, Inc. TCM Series Coriolis mass flow meters deliver direct, high-accuracy measurement of mass flow, density, and temperature for liquids and gases. With liquid accuracy up to ±0.1%, they ensure reliable, repeatable performance even when fluid properties or process conditions change.

Differential Pressure Flow Meters

Differential pressure flow meters measure flow by detecting pressure drops across a restriction. Options include Venturi, orifice plate, and wedge-type meters, offering reliable, cost-effective solutions for clean, viscous, slurry, and dirty fluids across diverse industrial applications.

TM Series Turbine Flow Meter

Accuracy +/- 1% of rate
Wide Temperature Application -100°F to +250°F (+850°F with special coil)
Repeatability of 0.1%

Line sizes from 3/8″ to 10″
Flow rates from 0.3 to 5,500gpm
Pressures up to 5,000psi

TMG Series Gas Flow Meter

Accuracy +/- 1% of rate
Temperature Application -450°F to +450°F (850° F with special coil)
Highly configurable materials of construction

Line sizes 1″ to 12″
Flow rates from 0.5 to 12,000 ACFM
Pressure up to 15,000psi

HA Series High Accuracy Flow Meter

Accuracy +/- 0.5% of rate
Wide Temperature Application -450°F to +450°F (850°F with special coil)
Highly configurable materials of construction

Line sizes from 1/2″ to 12″
Flow rates from 1 to 12,000gpm
Pressure up to 20,000psi

WM Series Wafer-Style Flow Meter

Accuracy of +/- 1% of rate
Temperature Application -100°F to +250°F (+850°F with special coil)
Repeatability of 0.1%

Line sizes 3/8″ to 10″
Flow rates from 0.3-5500gpm (10-190,000)BPD
Pressure up to 3,700psi

WHA Series High Accuracy Wafer Flow Meter

Accuracy +/- 0.5% of rate
Wide Temperature Application -450°F to +850°F
Highly configurable materials of construction

Line sizes from 1″ to 4″
Flow rates from 1 to 1,250gpm
Pressure up to 6,170psi

TMC Series Cryogenic Flow Meter

Accuracy +/- 0.5% of rate
Wide Temperature Application -450°F to +450°F
Specifically Engineered for Cryogenic Applications

Line sizes from 1/2″ to 12″
Flow rates from 1 to 12,000 gpm
Pressure up to 20,000 psi

HP Series High Pressure Flow Meter

Accuracy +/- 1% or 0.5% of rate
Temperature Application -100°F to +250°F
Highly configurable materials of construction

Line sizes 2″ or 3″
Flow rates from 15-600gpm
Pressure up to 15,000psi

LF Series Low Flow Meter

+/- 0.25% Repeatability of rate
Temperature Application -70°F to +450°F
Specifically Engineered for Low Flow Applications

Line size 1/2″
Flow rates from .007 to 3.00gpm
Pressure up to 5,000psi

LFENC Series - Encapsulated Low Flow Meter

+/- 0.25% Repeatability of rate
Temperature Application -450°F to +450°F
Specifically Engineered for Low Flow Applications

Line size 1/2″ or 1″ FNPT
Flow rates from .007 to 3.00 GPM
Pressure up to 20,000 psi

QCM Series – Quick Change Meter

Accuracy +/- 1.5% of rate
Wide Temperature Application -40°F to +300°F
Highly configurable materials of construction

Line sizes 1″ or 2″
Flow rates from 5 to 225gpm
Pressure up to 1,500psi

ITM Series - Digital Flow Meter

Accuracy of +/- 1.0% of rate Temperature Application -22°F to +150°F Repeatability of +/- 0.1% Line sizes 7/8″ , 1″ or 2″ Flow rates from 3 to 30gpm, 5 to 50gpm & 15 to 180gpm Pressures up to 4,000psi

SLGM Series Gas Flow Meter

Accuracy of +/- 1.0% of rate Temperature Application -450° F to +450° F (850° F with special coil) Repeatability of 0.1% Line sizes 1″ or 2″ Flow rates from 0.5 to 250 ACFM Pressure up to 3,700psi

WMG Series Gas Flow Meter

Accuracy of +/- 1.0% of rate Temperature Application -450° F to +450° F (850° F with special coil) Repeatability of 0.1% Line sizes 1″ to 4″ Flow rates from 0.5 to 1,250 ACFM Pressure up to 3,700psi

TMSA 3A Sanitary Flow Meter

Accuracy +/- 0.5% of rate Temperature Application -100°F to +400°F Repeatability of +/- 0.1% Line sizes 1/2” through 3” Flow rates from 1.25 to 650gpm

Available Configuations

TCM 0325
TCM 0650
TCM 1550
TCM 3100

Available Configuations

TCM 5500
TCM 7900
TCM 028K
TCM 065K

Available Configuations

TCM 0230K
TCM 0325

HVT Fabricated Venturi Flow Meter (HVT-FV)

+/- 0.50% Uncalibrated Uncertainty
Low Loss, Municipal & Industrial Applications

Line Size: 1/2 to 144 inches.
Headloss % of Differential: 3.50 to 10.0 percent
Recommended pipe Reynolds number: Greater than 75,000

HVT Fabricated Venturi Flow Meter (HVT-CI, HVT-DI)

+/- 0.50% Uncalibrated Uncertainty
Low Loss, Municipal & Industrial Applications

Line size: 4 to 96 inches.
Head loss % of Differential: 3.50 to 10.0 percent
Recommended pipe Reynolds number: Greater than 75,000 for basic accuracy

HVT Fabricated Venturi Flow Meter (HVT-FI)

+/- 0.50% Uncalibrated Uncertainty
Low Loss, Internal / Flange Mounted

Line size: 3 to 144 inches
Head loss % of Accuracy: 3.50 to 10.0 percent
Recommended pipe Reynolds number: Greater than 75,000 for basic accuracy

Wedgetype Flow Meter (WM)

+/- 4.00% Uncalibrated Uncertainty
Dirty liquids and Slurries

Line size: 1/2 to 30 inches
Head loss % of Differential: 25 to 60 percent
Recommended pipe Reynolds number: Must be greater than 500 for basic accuracy

Wedge-X Flow Meter (WX)

+/- 4.00% Uncalibrated Uncertainty
Integral Manifold, Replaceable Wedge

Line size: 2 inches
Head loss % of Differential: 25 to 60 percent
Recommended pipe Reynolds number: Must be greater than 5000 for basic accuracy
